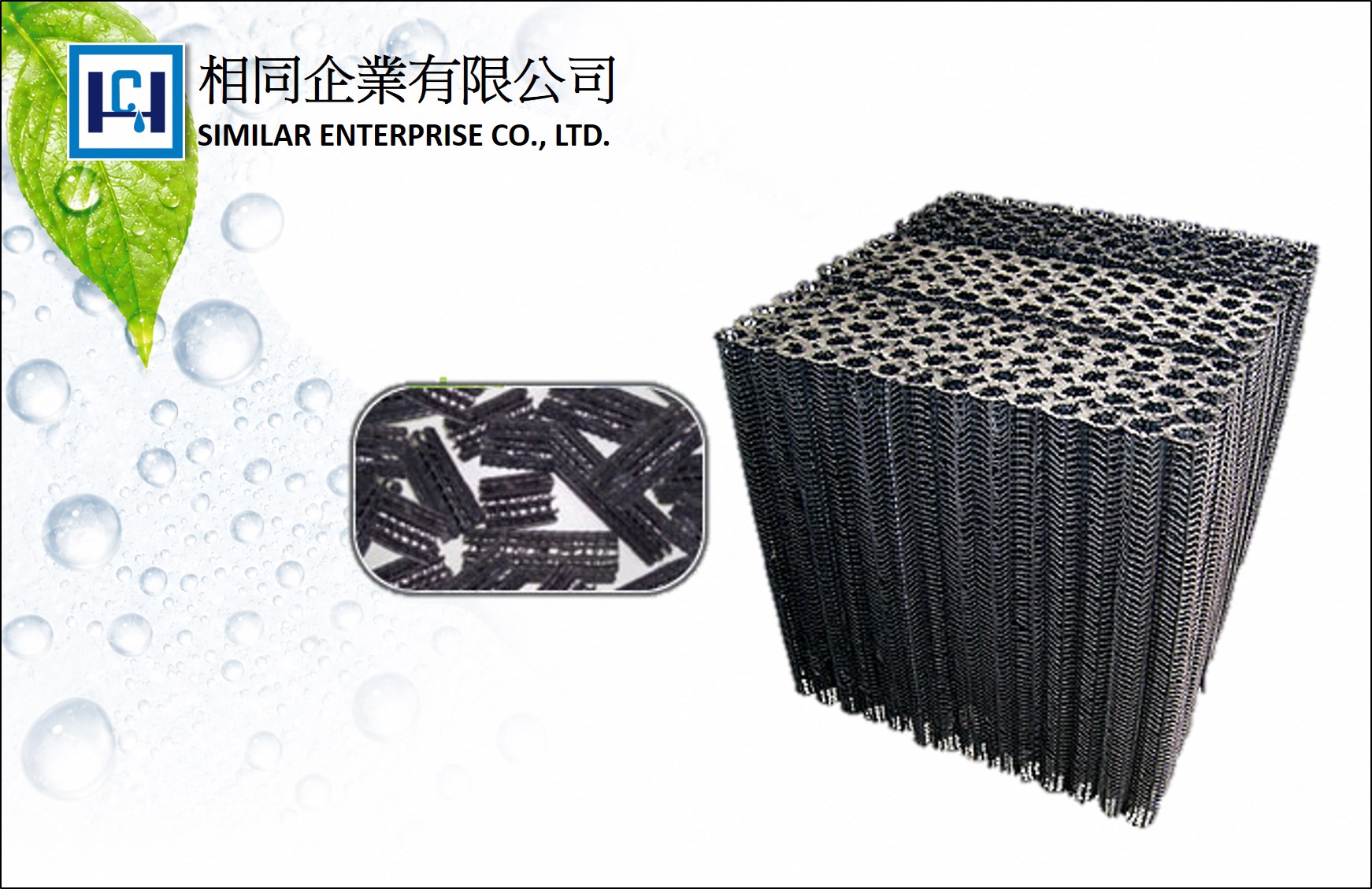

Network Shape Filter
FEATURE :
1. Made of HDPE high-density environmental protection
2. From bio-menbrane within a very short period with high efficiency
3. High rate of removing organic substances, reducing the area occupied. Low investment costs.
4. Great mechanical strength with the bending strength for over 8 tons per meter square
5. Coarse surface makes organisms be easily attached.
6. Network shape and permeability are effective high-potent bio- filter materials without blocking.
7. Long life.
8. Low maintenance fees.
9. Arbitrary model (for example, floating, filtration, immersion) with arbitrary length.
NT$0
sample
FEATURES :
1. Made of HDPE high-density environmental protection
2. From bio-menbrane within a very short period with high efficiency
3. High rate of removing organic substances, reducing the area occupied. Low investment costs.
4. Great mechanical strength with the bending strength for over 8 tons per meter square
5. Coarse surface makes organisms be easily attached.
6. Network shape and permeability are effective high-potent bio- filter materials without blocking.
7. Long life.
8. Low maintenance fees.
9. Arbitrary model (for example, floating, filtration, immersion) with arbitrary length.
APPLICATIONS :
Water circulation system for aquaculture, industrial sewage, hospital sewage, daily living sewage and water tower filler.
Air pollution prevention: Absorb oil smoke of restaurant, absorb water smoke of cooling water tower.
Model |
Effective surface area
(m²/m³) |
Flow rate
(%) |
Leaking rate
(%) |
Diameter of pipes
(m/m) |
Unit amout |
SAME-66 |
155~350m²/m³ |
95% |
92% |
70mm |
1-3kg/D |
Model |
SAME-66 |
Effective surface area
(mm) |
155m²/m³ / 350m²/m³ |
Flow rate
(mm) |
95% |
Leaking rate
(%) |
92% |
Diameter of pipes |
70mm |
Unit amout
(mm) |
1-3kg/D |
