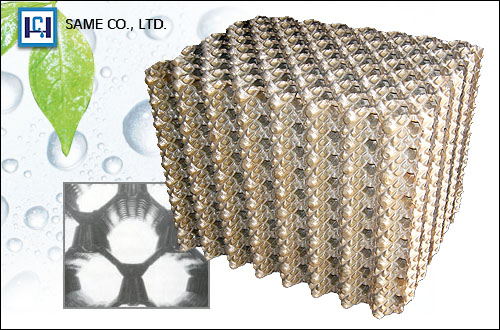

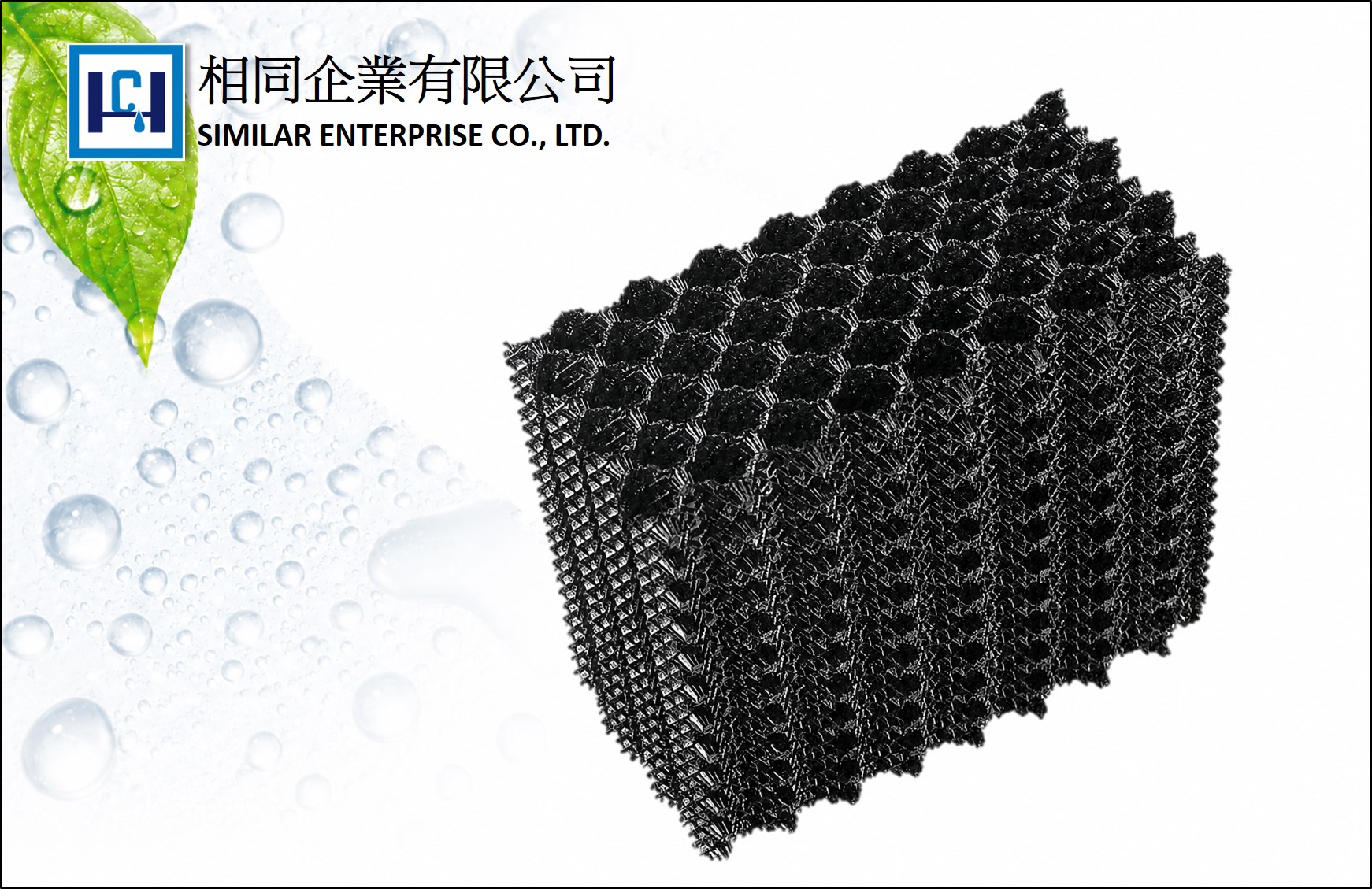

Honeycombed Contact Filter By PVC& ABS

FEATURES :
1. Larger surface with outstanding treatment function.(45-105m2/m3)
2. Remarkable strength and safe installation operation.
3. Little water resistance, high leaking rate(99.0~99.3%), no obstruct produced on contact filter.
4. Provided with moderate feature for bio-membrane to adhere to.
5. High feature for capturing plankton
6. Great mechanical strength, not easy to be out of shape, not easy to get curved, excellent durability.
7. Low expense, high efficiency, great economic benefits.


Quantity:

NT$0

sample

FEATURES :
1. Larger surface with outstanding treatment function.(45-105m2/m3)
2. Remarkable strength and safe installation operation.
3. Little water resistance, high leaking rate(99.0~99.3%), no obstruct produced on contact filter.
4. Provided with moderate feature for bio-membrane to adhere to.
5. High feature for capturing plankton
6. Great mechanical strength, not easy to be out of shape, not easy to get curved, excellent durability.
7. Low expense, high efficiency, great economic benefits.



SPECIFICATIONS :

Specification / Model Aperture
(m/m)		 Effective surface area
(m²/m³)		 Leaking rate
(%)		 Thickness of single slice
(m/m)		 Standard dimension
(m/m)		 Strength
(kg/m²)
CM-80 80 53 99.2 0.55 1000 500 ~ 1000 1000 1000
CM-56 56 72 99.2 0.5 1000 500 ~ 1000 1000 1000
CM-40 40 105 99.0 0.4 ~ 0.45 1000 500 ~ 1000 1000 1000
Specification / Model CM-80 CM-56 CM-40
Aperture
(mm)		 80 56 40
Effective surface area
(m²/m³)		 53 72 105
Leaking rate
(%)		 99.2 99.2 99.0
Thickness of single slice
(m/m)		 0.55 0.5 0.4 ~ 0.45
Standard dimension
(m/m)		 1000 500 ~ 1000 1000
1000 500 ~ 1000 1000
1000 500 ~ 1000 1000
Strength
(kg/m²)		 1000 1000 1000
